Moving Grate Hot Water Boilers are high-efficiency, robust systems designed for space heating, domestic hot water, and industrial process heating in both civil and industrial sectors. These boilers utilize solid fuel combustion to generate hot water, which is then circulated through the heating network via high-performance pumps. This water-based medium allows for significant distances between the boiler plant and the end-use application, providing superior architectural flexibility in facility planning.

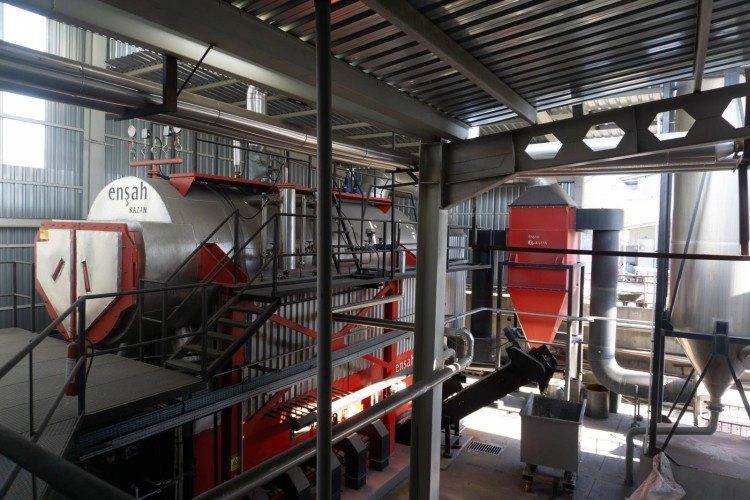

Engineered with a vertical configuration atop a heavy-duty steel platform, these units are available in two-pass or three-pass designs tailored to specific capacity requirements. The boiler is centrally integrated with the moving grate, utilizing high-grade refractory brick and specialized concrete applications to maximize thermal insulation and ensure peak combustion efficiency.

Operational precision is managed through a proportional control system that automatically synchronizes the grate speed, fuel feed rate, and combustion air fan speeds to maintain the target temperature. Furthermore, by extending the flame path and gas passageways within the boiler, the system ensures that the vast majority of thermal energy is recovered for water heating, minimizing exhaust losses.

Manufactured in strict accordance with EN and CE norms, these boilers are constructed from premium materials and equipped with comprehensive safety and protection systems. They are designed for operating pressures of 6 or 10 bar, with thermal capacities ranging from 2,300 to 6,000 kW.

Thanks to their energy-saving design and sustainable material selection, these boilers offer a premium heating solution. They are the preferred choice for district heating in large-scale residential complexes, as well as for demanding applications in the textile, food processing, and chemical industries.
